Thin Plate PCB Etching Machine GE-SK2 for Small Models Plate Thickness 0.05mm -3.2mm

PCB Etching Machine/ PCB machine

Automatic PCB Etching Machine / PCB Machine (PCB etching equipment)


PCB Etching Machines / Circuit Board Making Machine
Presicion Etching /Stripping Production Line
Specification introduction
Economy configuration15mm PP plate & Stainless Steel Shaft
Field dimension12500mm(L)*1650mm(W)*1700mm(H)
ConveyorTransact metal panel thickness0.5~5MM
Conveyor height900MM (+/-25mm)
Conveyor width650MM
PowerVoltage/phase/frequency380V,3Phase,50Hz,
Control boxControl Button Panel
Power consumption46.5KW(include heater)
Water consumptioncity water consumption0.5Ton/Hour
DI water consumption--------

Pipe diameter
City water flow pipe diameterDN32
Waste water drainpipe diameterDN40
Exhaust emission pipe diameter160mm
TransportationOperation speed0.5-5 M/MIN (adjust)
Transmission wheelRubber Wheel
panel space2"
Conveyor work flowFrom L to R
Product Description

Process:

Load (450mm) ---Etching 1, 2 (2000mm)--- Pressure rinse (1000mm) ---Checking(300mm)--- Stripping(2000mm) ----Pressure Rinse(1500mm)---- Cold dry(500mm)----Hot dry (1000mm)-----Unload (450mm)

PCB Etching Machines / Circuit Board Making Machine, iunlcuding etching and stripping process. It used for double-sided board or multi layer PCB or thin copper etching uses with high precision.
Detailed Photos

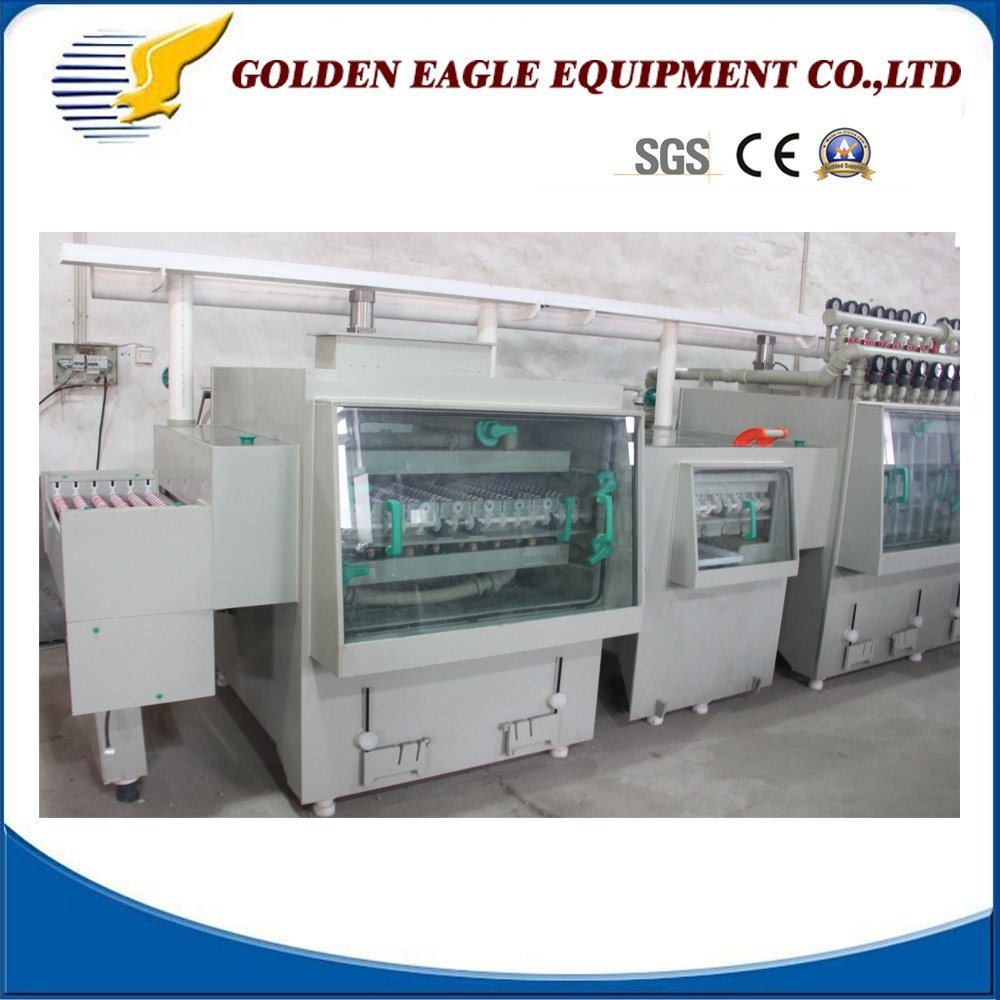

PCB Etching Machine (smalll model) (GE-SK2)PCB Etching Machine (smalll model) (GE-SK2)PCB Etching Machine (smalll model) (GE-SK2)PCB Etching Machine (smalll model) (GE-SK2)
