Sk12 Golden Eagle PCB Assembly Etching Machine with Conveyor Speed of 0.5-6m/Min

Beijing Golden Eagle Technology Development Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
  • Product Details
  • Company Profile

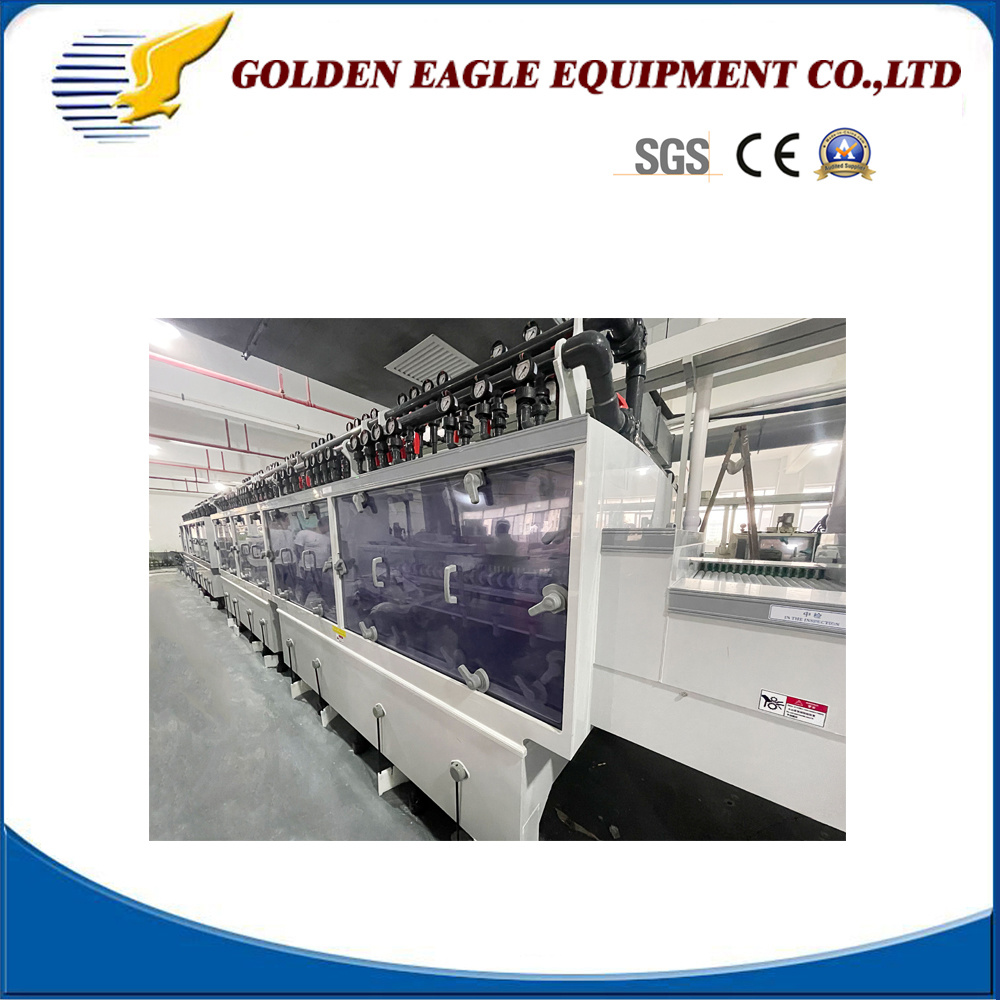

Sk12 Golden Eagle PCB Assembly Etching Machine with Conveyor Speed of 0.5-6m/Min

SK12 Golden Eagle PCB Assembly Etching Machine
Product Parameters
Machine ModelGE-SK12
Machine Power108KW/380V/50HZ
Working Width450mm
Working height900mm±25mm
Working Temperature37~45ºC
Etching TypeDouble sided etching strip swaying
Heating SystemTitanium tube heating
Etching Pump7.5KW/380V/50Hz

Working Form
Spray type, horizontal track feeding
(Stepless speed regulation)
Machine Size17600*1700*1700mm (L*W*H)
Machine Weight6200kgs
Product Description

Technological process
Load(500mm) - Etch 1 (2000mm) - Etch 2 (2000mm) - Etch 3 (2000mm) - Etch 4 (2000mm) - Etch 5 (2000mm) - Etch 6 (2000mm) - Clean (1500mm) - Unload (500mm)

Equipment description:
It adopts continuous mode and automatically cleans after etching. Materials used for the unit: PP high-quality engineering plastic and carbon steel plate.
Processing workpiece size: 650mm (maximum width); fifty × 50mm (minimum); 0.1~5.0mm (thickness) conveying speed range: 0.5~6.0m/min; Adjustable speed [preset working speed: 2.5 meters/minute] Transmission shaft diameter: 14mm
Roller diameter: 40MM
Detailed Photos

Sk12 Golden Eagle PCB Assembly Etching MachineSk12 Golden Eagle PCB Assembly Etching MachineSk12 Golden Eagle PCB Assembly Etching MachineSk12 Golden Eagle PCB Assembly Etching MachineSk12 Golden Eagle PCB Assembly Etching MachineSk12 Golden Eagle PCB Assembly Etching Machine

Certifications

Sk12 Golden Eagle PCB Assembly Etching Machine

FAQ


1.Q:Are you trading company or a factory ?
A: We are manufactory and We have import and export License .
2.Q:Where is your factory ?How Can I visit there?
A: Our factory is located in Beijing, the capital of China,Warmly welcome to visit us.
3.Q:How can I get some samples ?
A: we are honores to offer you samples,please contact us anytime !
4.Q: How does your factory do regarding quality control ?
A: Quality is priority .Golden Eagle people always attach great importance to quality controlling from A to Z.
5.Q:Why us ?
A: 1. 20 years machine manufacture experiences !
2. More than 10 years good credit supplier on Made-in-China
3. satisfaction or we'll refund or rerun-your choice
4. Etching technology can be provided for free to our customer by our well-trained and professional engineers and staffs.

Packaging & Shipping

Sk12 Golden Eagle PCB Assembly Etching MachineSk12 Golden Eagle PCB Assembly Etching MachineSk12 Golden Eagle PCB Assembly Etching Machine
